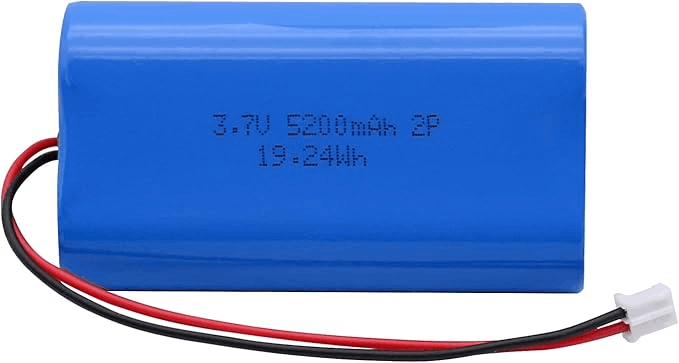

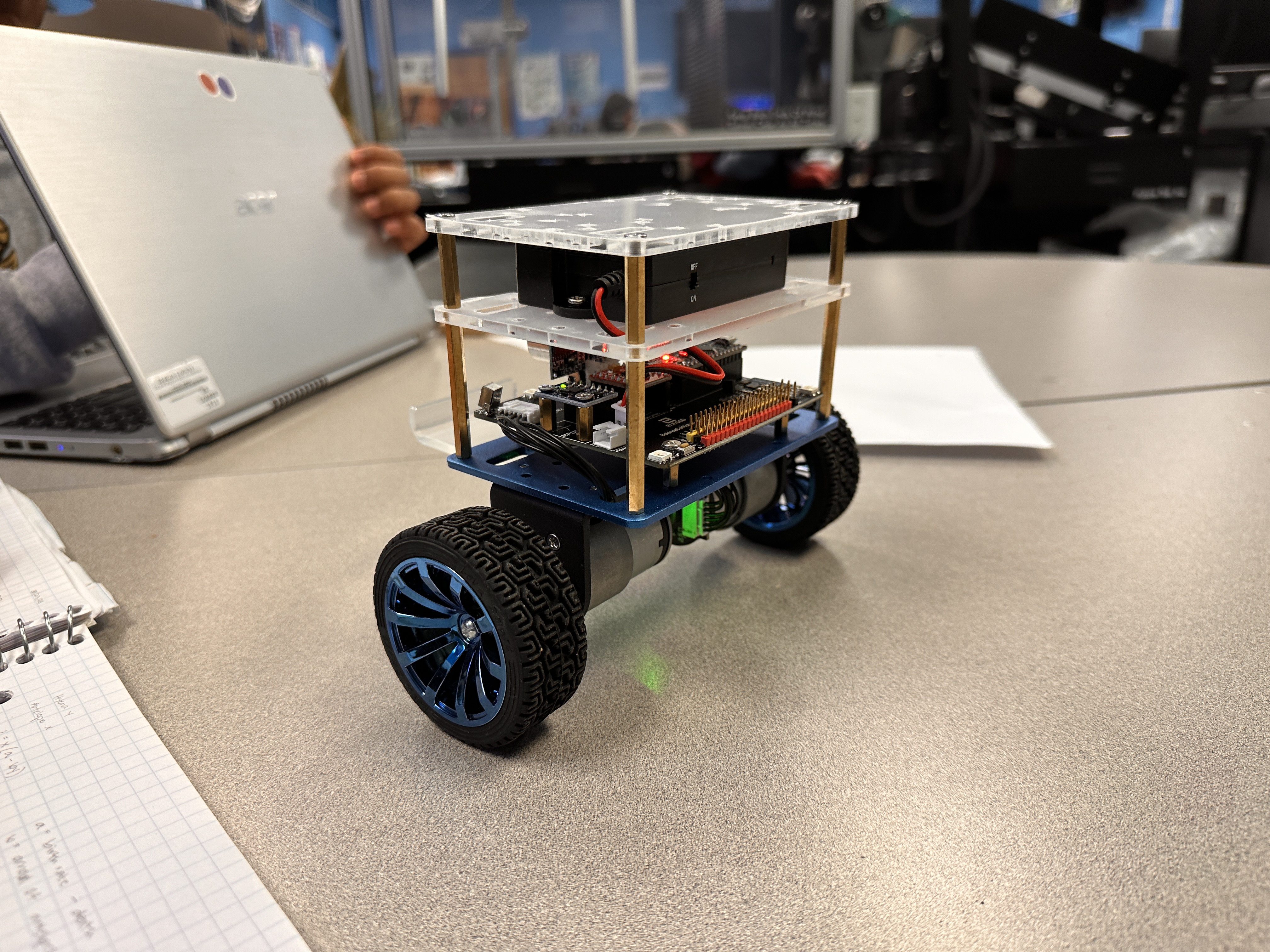

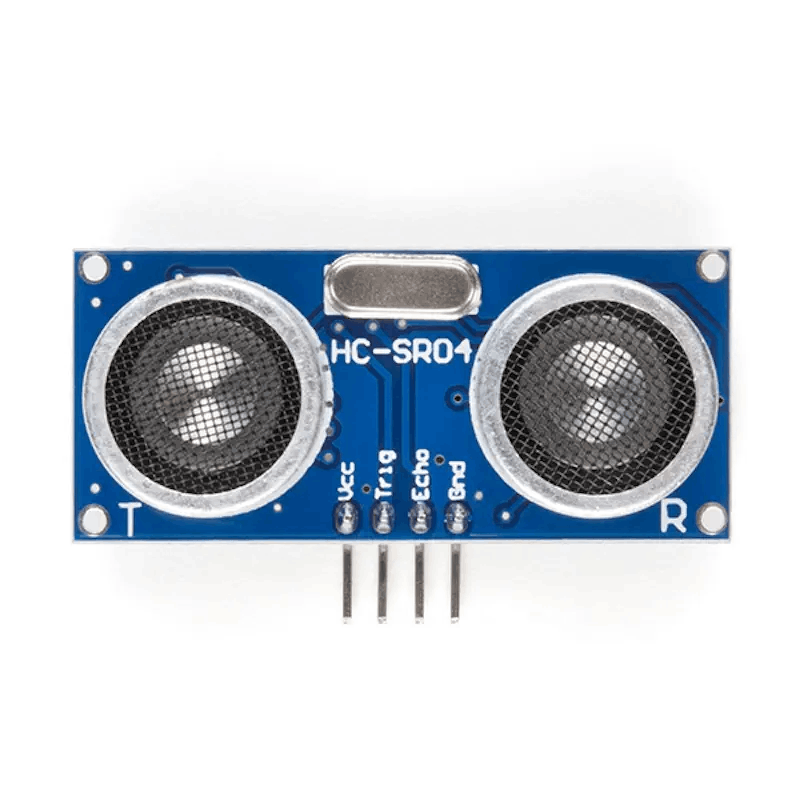

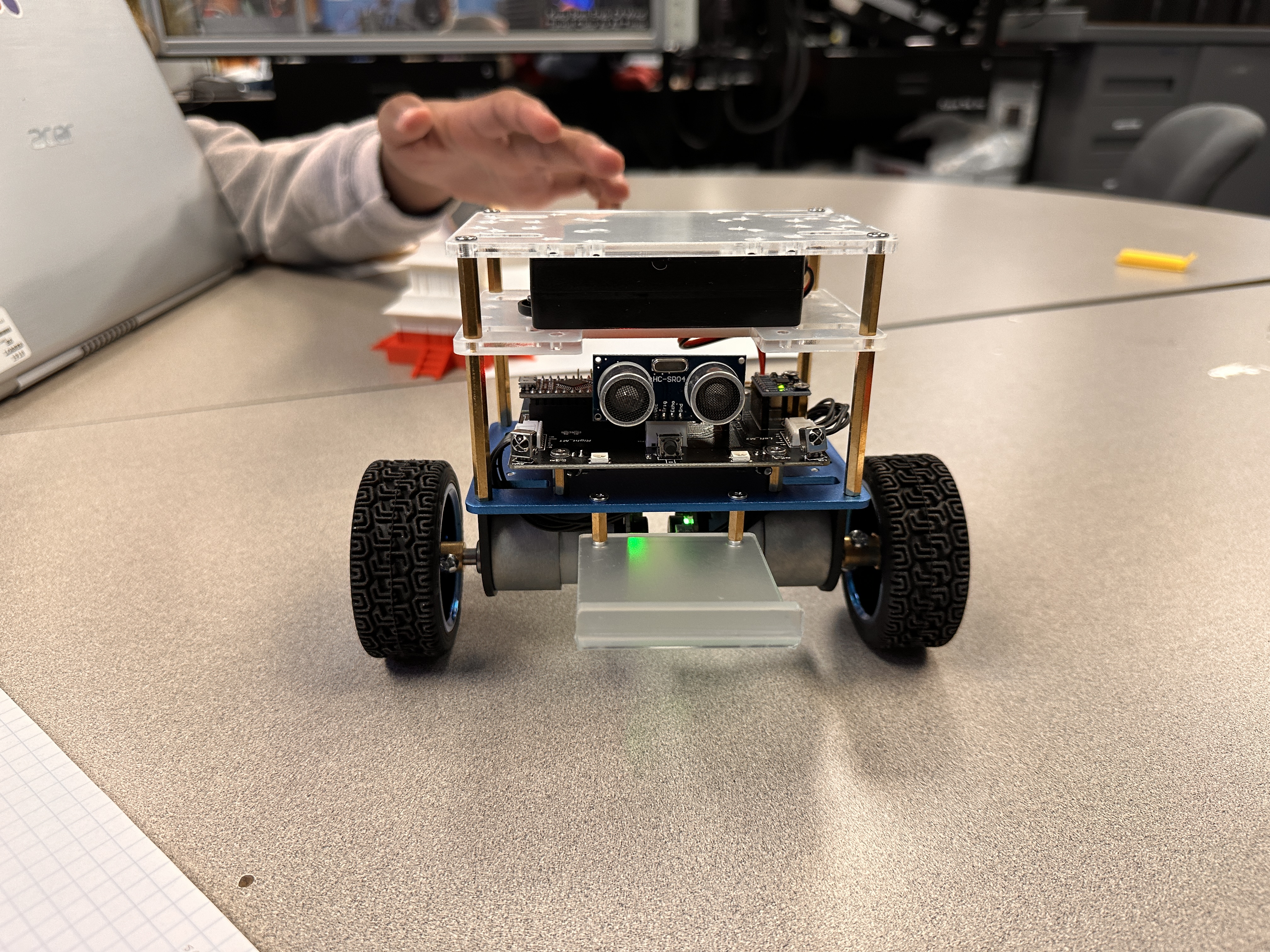

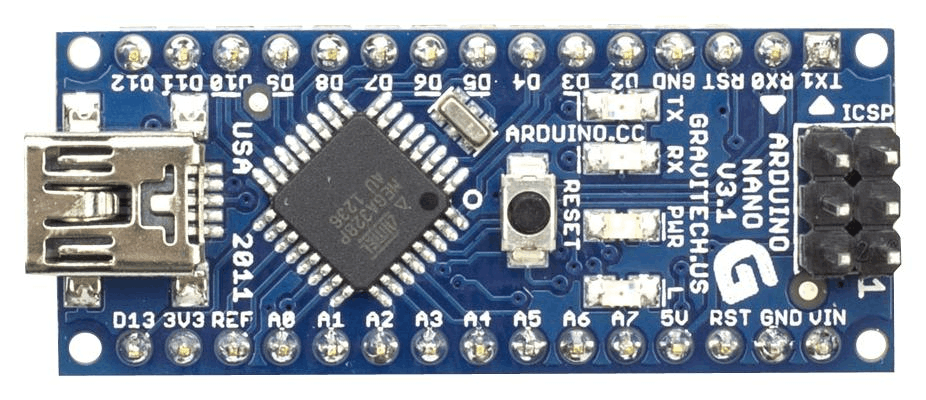

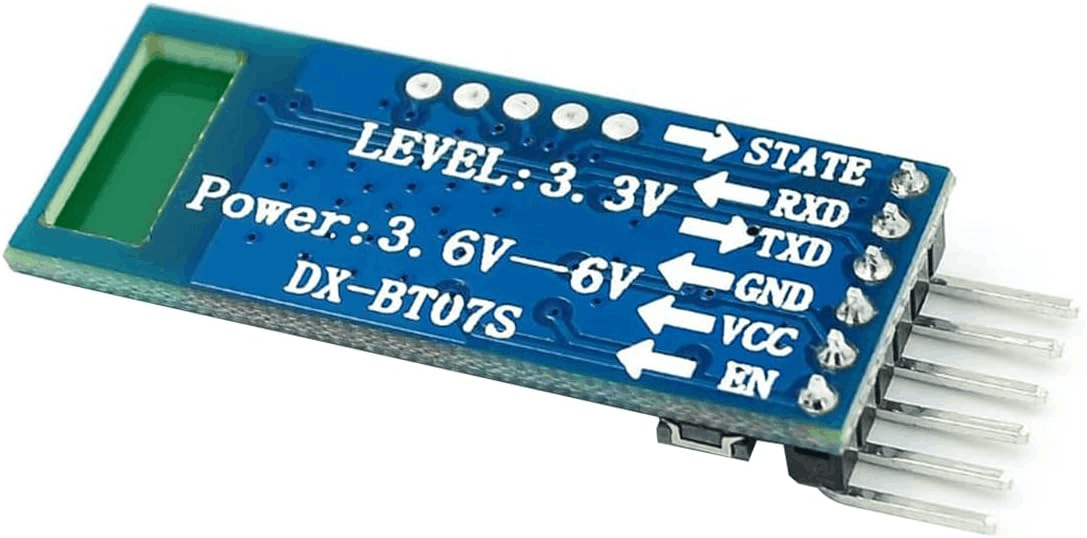

Arduino Self-Balancing Robot

PID Controller

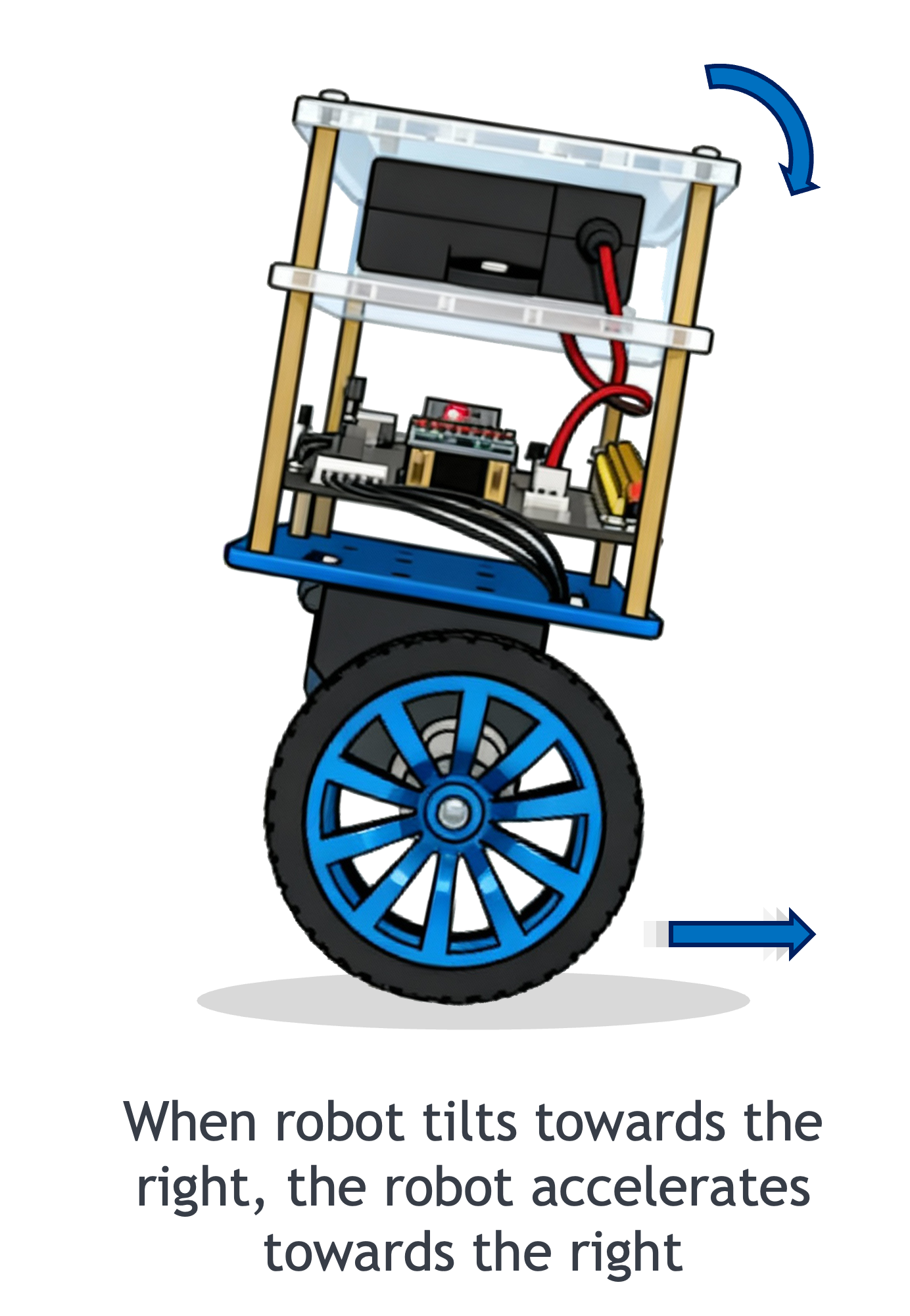

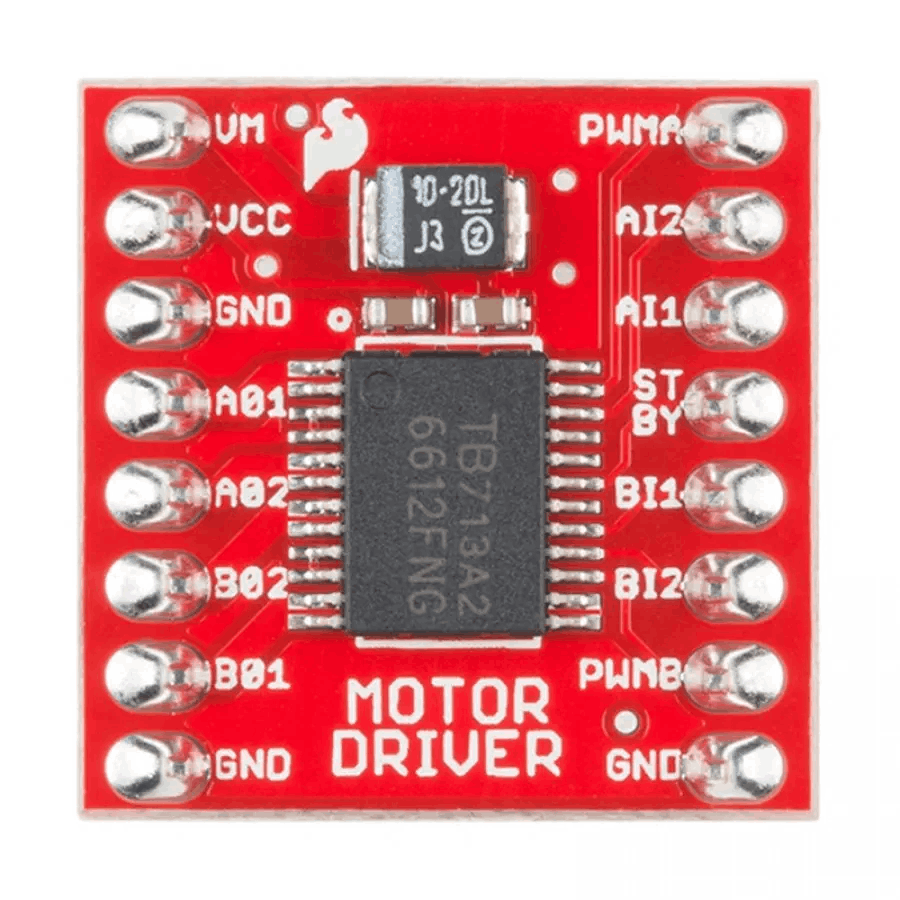

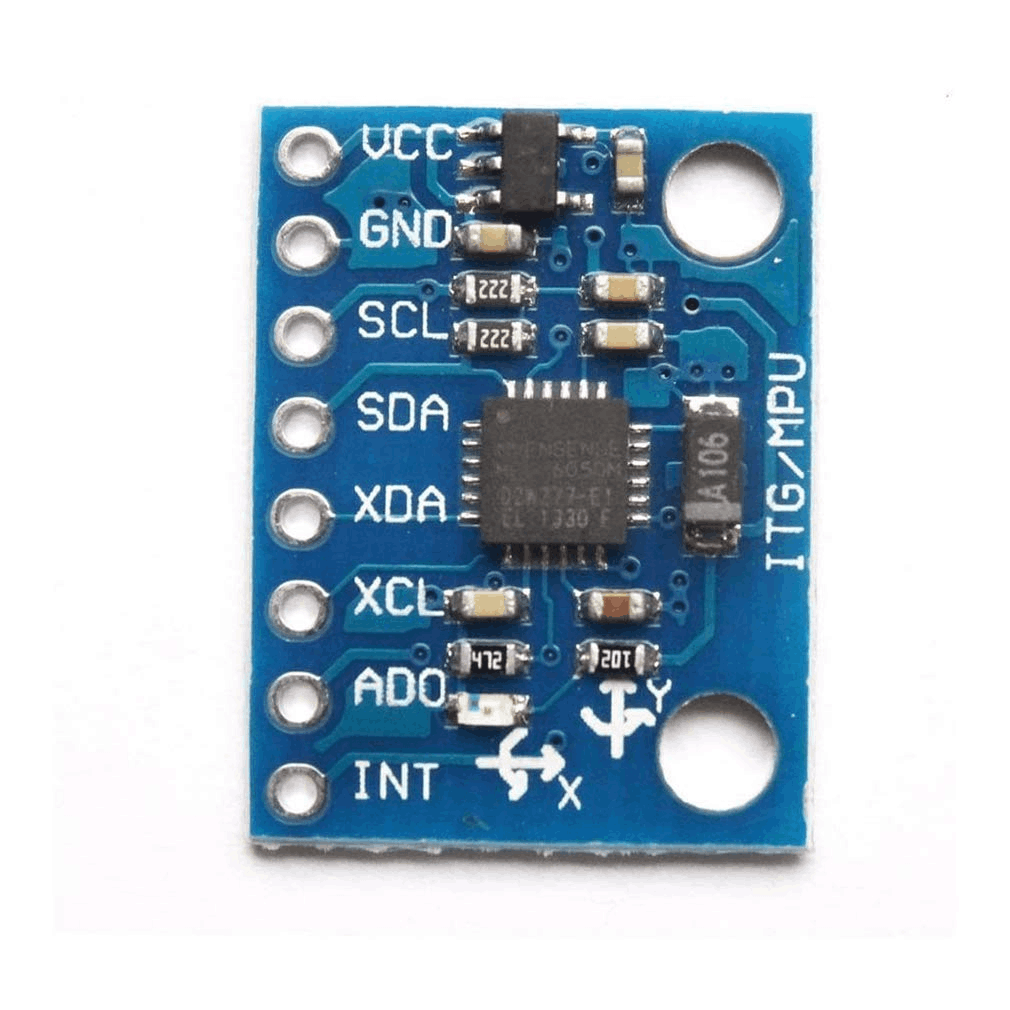

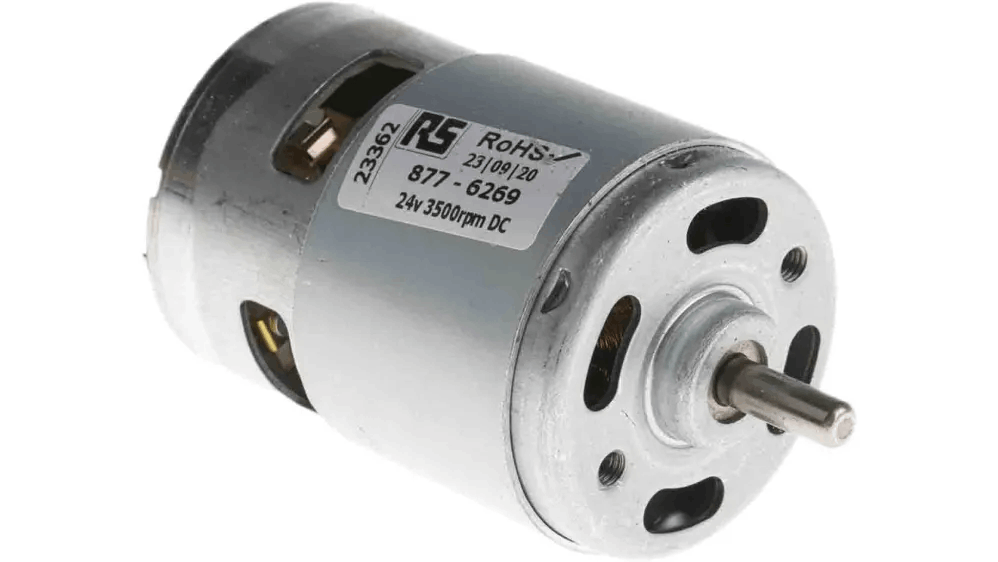

The controller is responsible for processing sensor data and adjusting the motor outputs to maintain balance. It uses PID control, which aims to minimize the error between the desired and actual positions of the robot based on proportional, integral, and derivative terms.

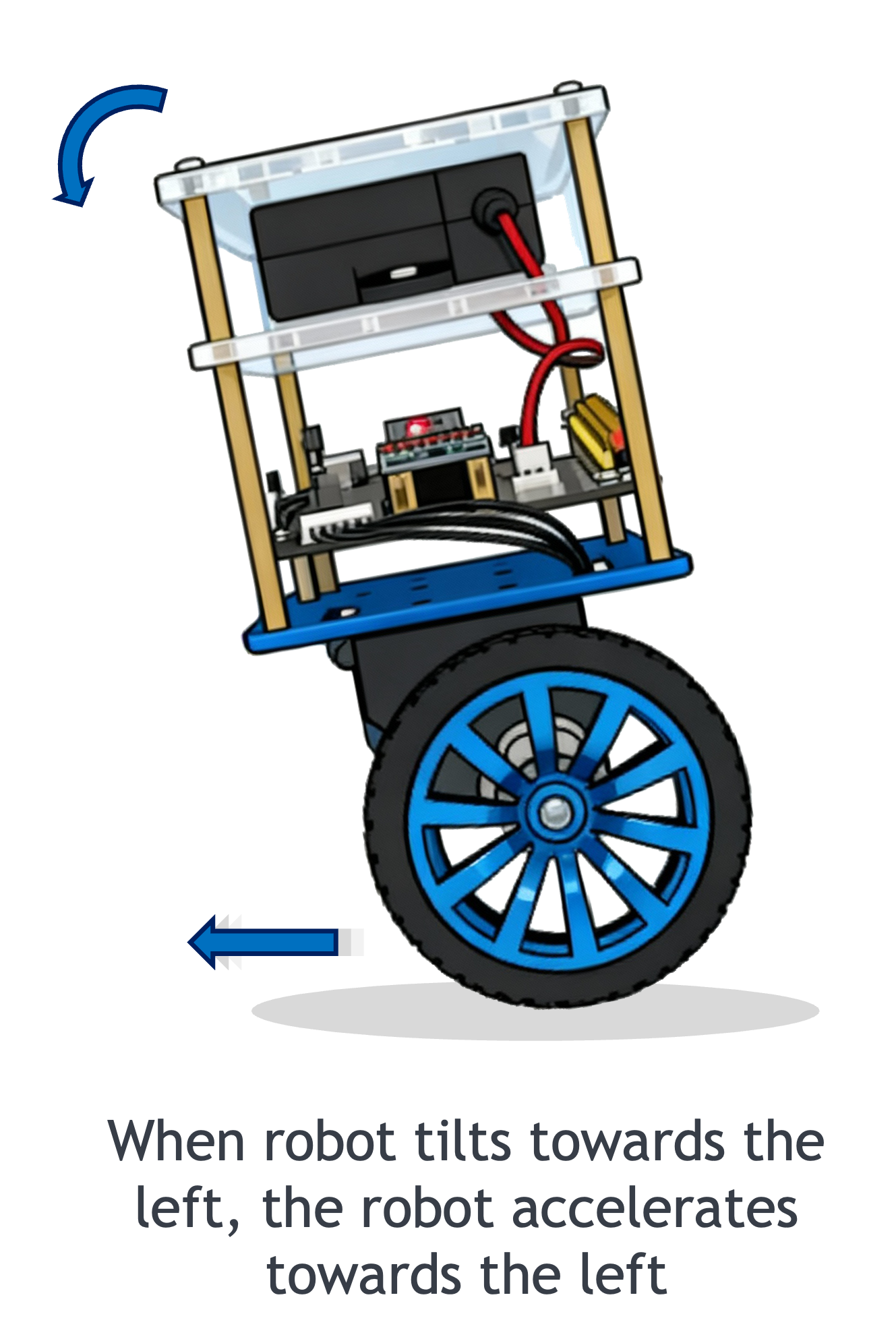

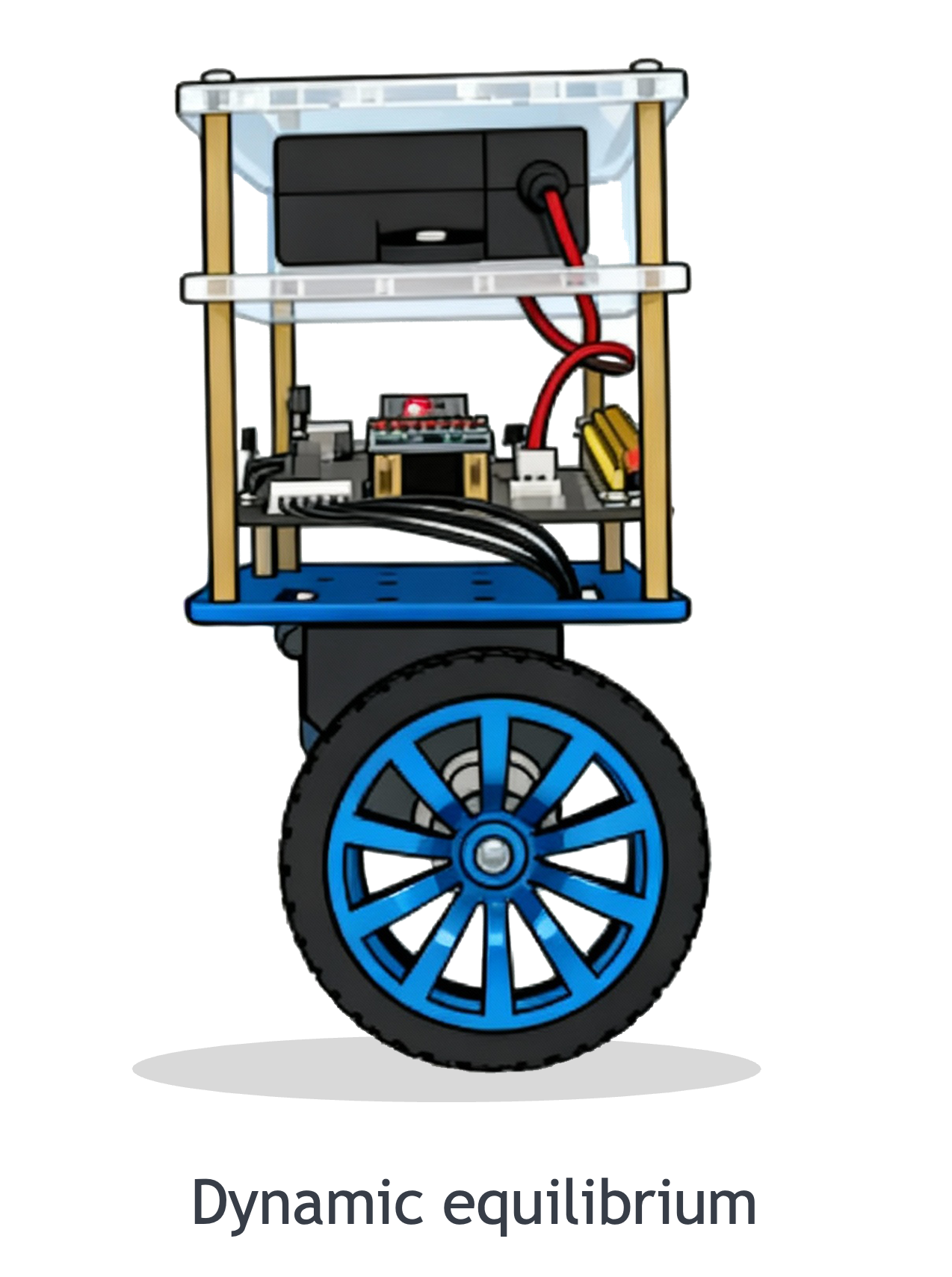

A large part of the project was dedicated to tuning PID constants. Tuning PID constants precisely is critical for a self-balancing robot because the system behaves like an inverted pendulum: inherently unstable and highly sensitive to small control errors. The robot is always on the edge of tipping over; even a tiny deviation grows quickly if not corrected immediately. Slightly off PID constants can mean the robot either reacts too slowly (falls) or too aggressively (oscillates and falls).

• Proportional (P): Reacts to the current tilt angle; provides an immediate correcting force proportional to how far the robot is leaning.
• Integral (I): Corrects long-term bias or small steady-state errors by accumulating past error. I was actually able to set this term to (essentially) 0 because the system's fast dynamics and sensor noise made integration unnecessary and potentially destabilizing.
• Derivative (D): Predicts motion by responding to the rate of change of tilt — effectively adds damping, preventing overshoot and helping smooth out rapid corrections.

Previous

Poorly-tuned PID constants. Notice the rapid oscillations - this is due to a large $K_p$ relative to $K_d$!

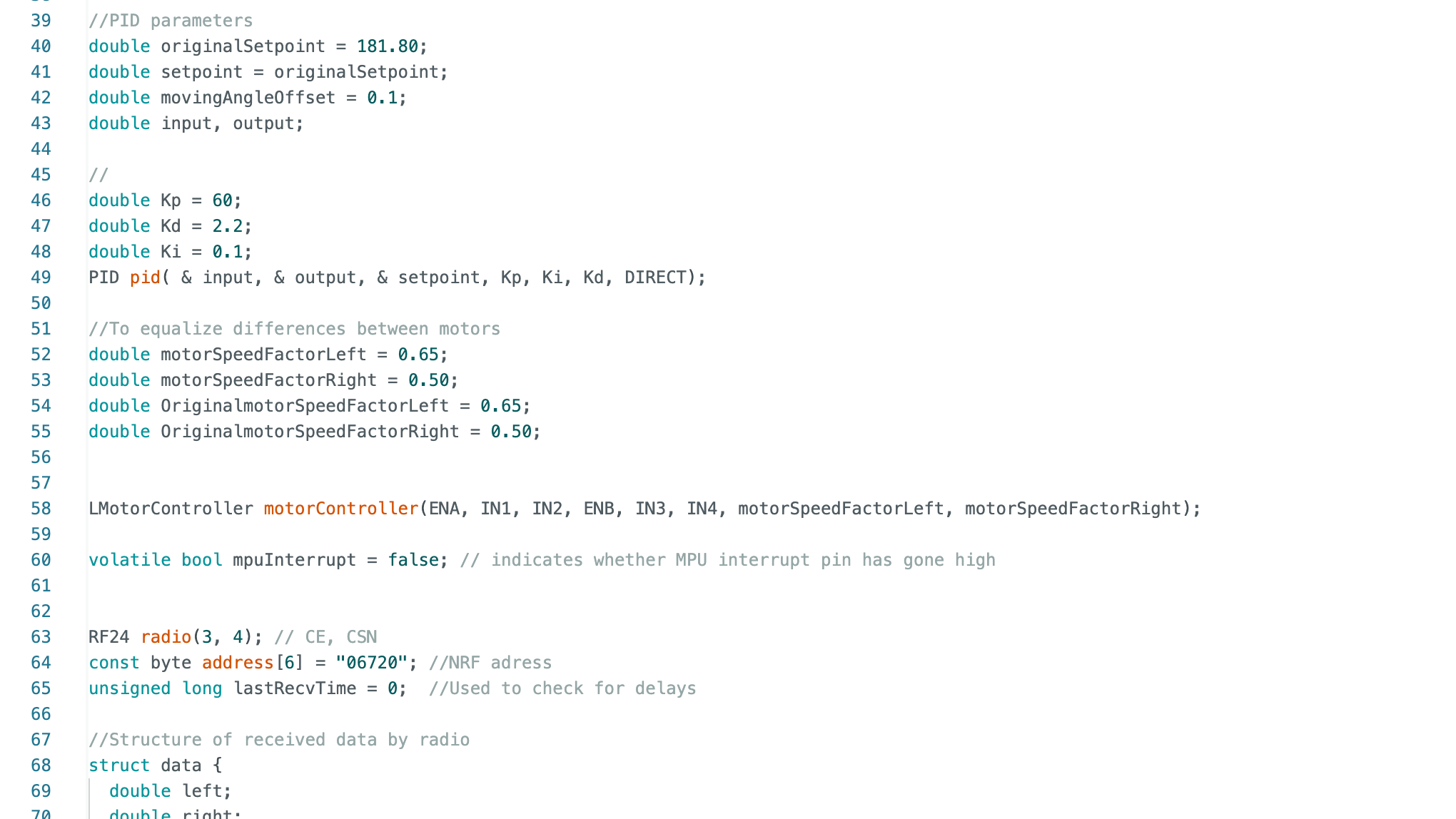

PID implemented in Arduino.
